| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Sino-NSH |
| 証明: | CE, ISO, CCC, SGS, CNAS, CQC |
| モデル番号: | VFD |
| 最小注文数量: | 1セット |
| 価格: | USD 5000-20000 dollar |
| パッケージの詳細: | 頑丈な木製ケース,長距離海上貨物輸送と気候の変化に適しており,湿気や衝撃に強い耐性 |
| 受渡し時間: | OEMのための15-25仕事日 |
| 支払条件: | L/C、T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 月額50セット |
| 電力(w): | 103のKW | 重さ: | 900 kg |
|---|---|---|---|
| 提供されるアフターセールスサービス：: | 海外でも機械の修理に対応できるエンジニア | 電圧: | 380v/50hz またはユーザーの選択に応じて |
| 保証: | 12ヶ月 | 色: | 青、グレー、緑またはカスタマイズ可能 |
| 使用温度: | -10~80°C | 材料: | 鋼鉄 |
| 加熱方法: | 電気 | 状態: | 新しい |
| 寸法(長さ*幅*高さ): | 1900*1400*1800 | 流量(L/H): | 6000 |
| 使用圧力: | ≤0.3MPa | 関数: | 電力変圧器などの油入電気機器の絶縁油の特性を改善するユニットです。 |
| 原材料: | 炭素鋼 | タイプ: | 変圧器オイルのろ過 |
| 容量: | 6000のL/H | 名前: | 6000 L/H 変圧器油清浄機油脱水機 |
| ハイライト: | 6000 L/H 変圧器油浄化装置、絶縁油浄化装置 |

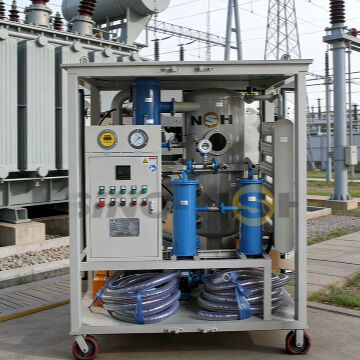

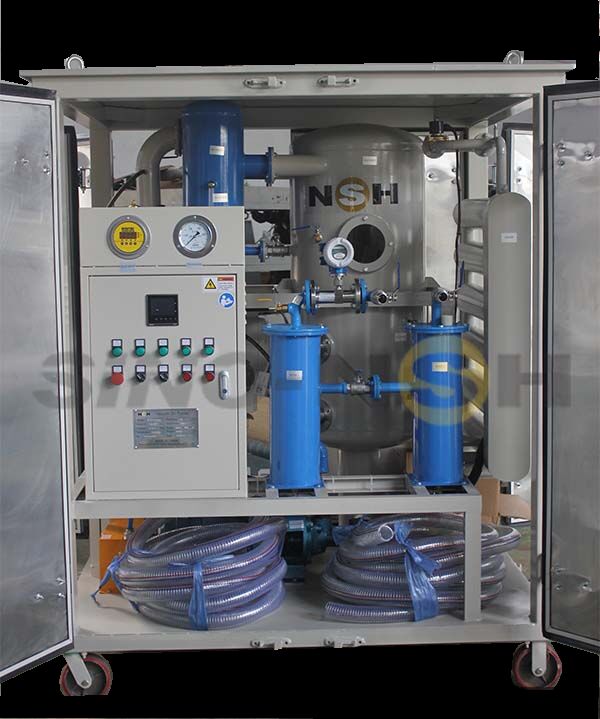

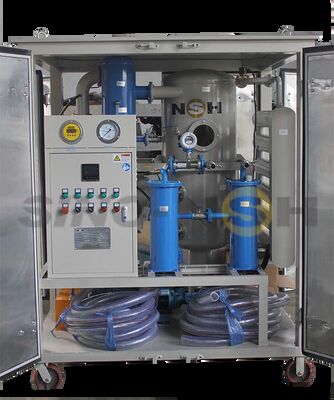

Sino-NSH 6000 liters/ hour Double-Stage Transformer Oil Purification Machine is a highly efficient and reliable oil cleaning equipment, specifically designed to meet the stringent requirements of transformer oil purification. This advanced machine is equipped with a robust steel cover, ensuring durability and safety during operation.
Sino-NSH-VFD series is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. VFD series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
Water Content:≤5ppm
Gas Content:≤0.1%
Filtration Fineness:≤5(or 1-5 as needed)
Operating conditions
The installation shall be designed to operate satisfactory at ambient temperatures ranging from -20 deg.C to 55 deg. C
The insulating oil is conveyed into the plant by means of pressure difference. Oil will firstly flow through a coarse filter, which can filter out large particles and mechanical impurities from insulating oil.
Oil is heated uniformly by electric heater with less specific heat transfer of1.7w/cm², thus the deterioration of the oil caused by overheating is avoided during this process.
The special vacuum tank create a large oil surface and a resulting thin film,where the oil flows track and static water evaporation area were expanded to the largest extent, so that the effect of dehydration and degassing is maximized effectively.The particular double-stage vacuum pump system and pressure-boost technical make vacuum degree in vacuum tank higher than that in common oil purifier plant. Specially-designed oil level controller in the vacuum tank assures a continuous oil flow-through in the plant, thus resulting in an optimized dehydration and degassing of the oil.
After degassing and dehydration under vacuum, the oil is conveyed by through the fine filter and out of the plant.
| Item | Unit | VFD-30 | VFD-50 | VFD-100 | VFD-150 | VFD-200 | VFD-300 |
| Capacity | liters/hour | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
| Heating Power | kW | 24 | 30 | 60 | 90 | 120 | 150 |
| Total Power | kW | 29 | 36 | 69 | 100 | 132 | 170 |
| Inlet Diameter | mm | 25 | 32 | 40 | 40 | 50 | 65 |
| Outlet Diameter | mm | 25 | 32 | 40 | 40 | 50 | 65 |
| Size-Length | mm | 1350 | 1500 | 1900 | 2200 | 2400 | 2900 |
| Size-Width | mm | 1100 | 1200 | 1400 | 1500 | 1600 | 1800 |
| Size-Height | mm | 1700 | 1750 | 1800 | 1850 | 1900 | 2000 |
| Weight | kg | 600 | 800 | 1150 | 1500 | 1700 | 2400 |
1.Dehydration (Degas) System
2.Filtering System(particulate matter removal)
3.Oil heating System
4.Electrical Apparatus controlling System
5.Oil-level Controlling System
6.High quality components
The main component parts of NSH products such as vacuum pump,oil pump and electric apparatus are from high quality suppliers. It ensures NSH products high quality and reliability.
